iFlight Blitz F7 V1.2 2-6S 30x30 Stack/Combo (F7 FC/ E55 32Bit 55A 4in1 ESC)

The V1.2 of the iFlight Blitz F7 E55 2-6S 30x30 Stack/Combo has arrived. These new flight controllers are equipped with a plug and play connectors making connecting your video transmitter, radio receiver, and other periphery sensors a breeze.

They also make diagnosing issues in the field much easier with status indicator LED's that let you know in seconds if you are having a problem with the 3.3V, 5V, or VBat. Coupled with iFlight's new 55 Amp BLHeli_32 Blitz 4-in-1 ESC, this stack can handle even the most amp hungry motors.

Check out our other 30x30 Stacks & Combos as well as our entire iFlight selection!

Features

• Improved circuit design, better components and lower electrical noise!
• DJI HD VTX Connector (Plug-and-Play / No soldering required)
• FC indicator LEDs for visual debugging
• With LC filter

Specification

Jan. 12, 2024: Gyroscope changed from BMI270 to ICM42688. Product name updated to BLITZ F7 V1.2 Flight Controller.

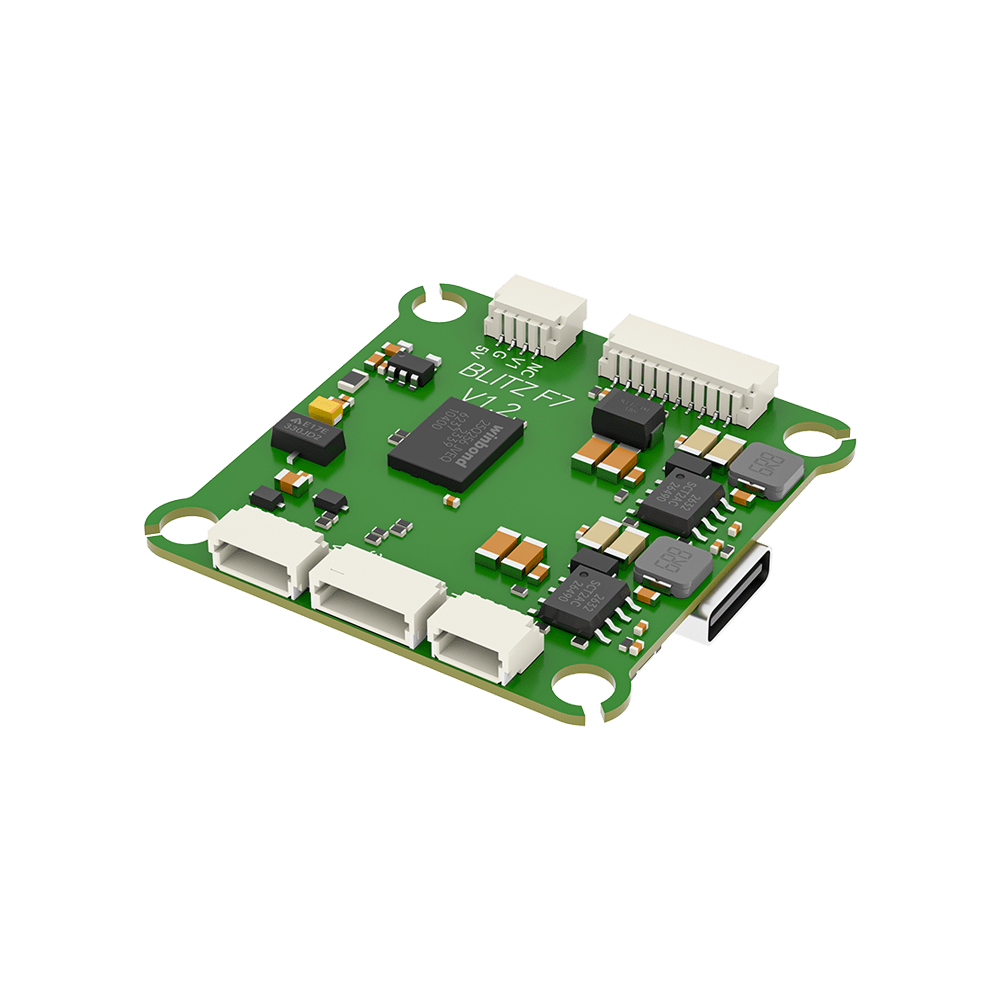

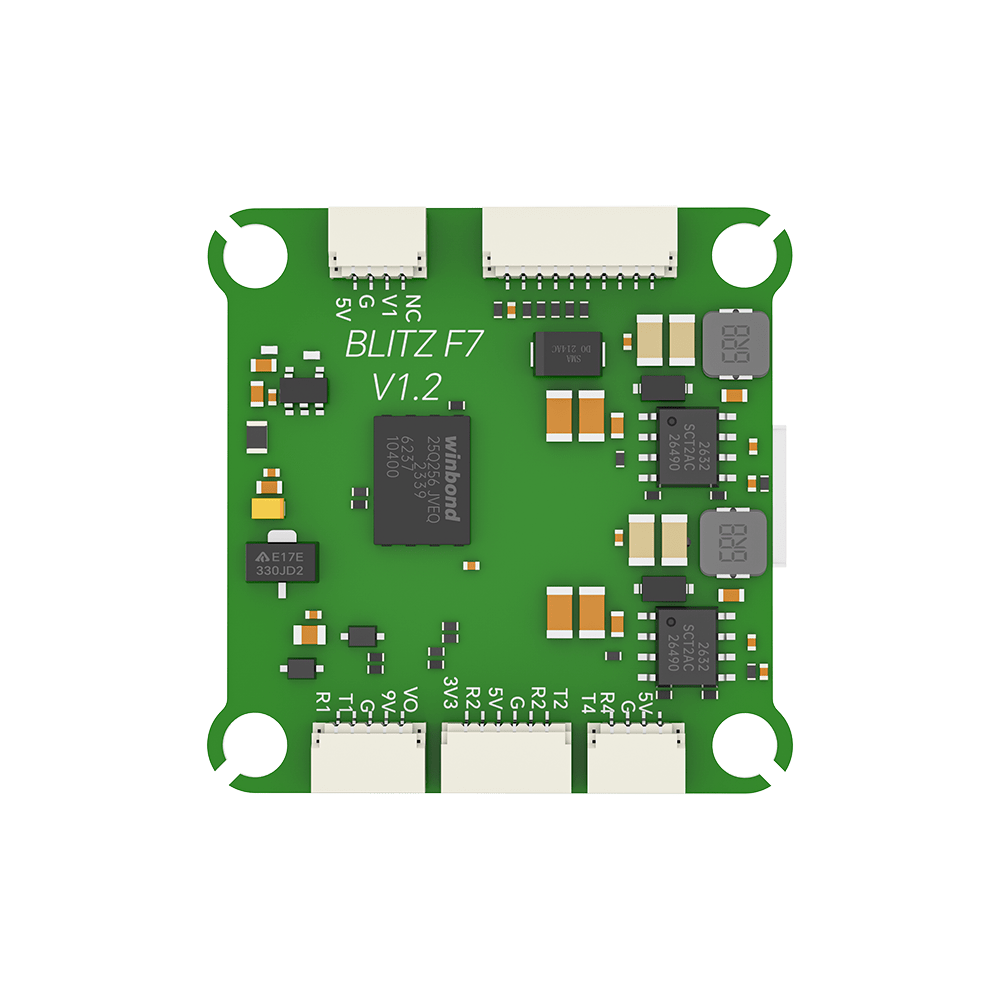

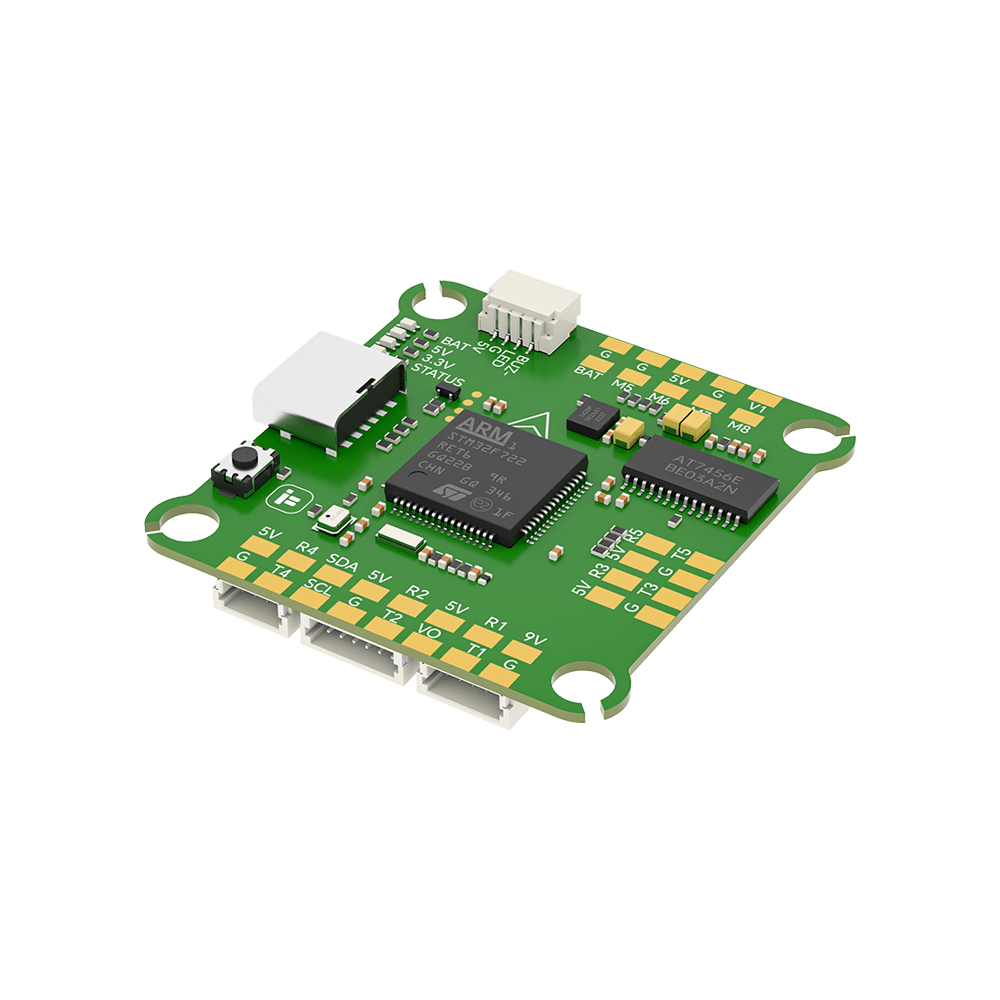

Blitz F7 V1.2

• MCU: STM32 F722
• Gyro: ICM42688
• Barometer: DPS310
• OSD Chip: AT7456E
• Flash: 32MB (Blackbox flash)
• UARTS: 6
• Motor outputs: 4x (SH1.0 connector)
• I2C serial: SDA / SLA pads
• Smartaudio / IRC Tramp VTX protocol supported
• LED controller: Yes
• Beeper pad: Yes
• Firmware target: IFRC-IFLIGHT_BLITZ_F722

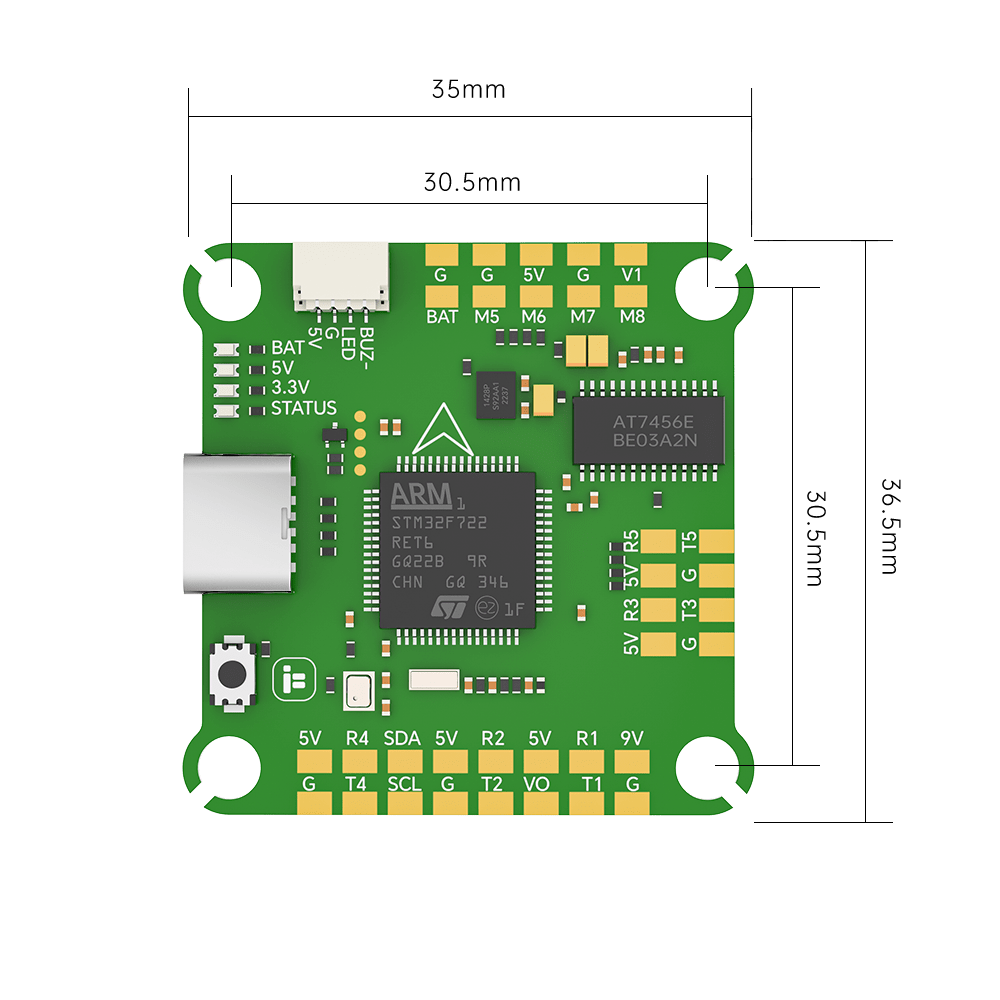

• Mount pattern: 30.5x30.5mm / 4mm PCB hole diameter
• Dimensions: 36.5x35 mm
• Weight: 7.8g
• BEC: 5V 2.5A / 9V 2A

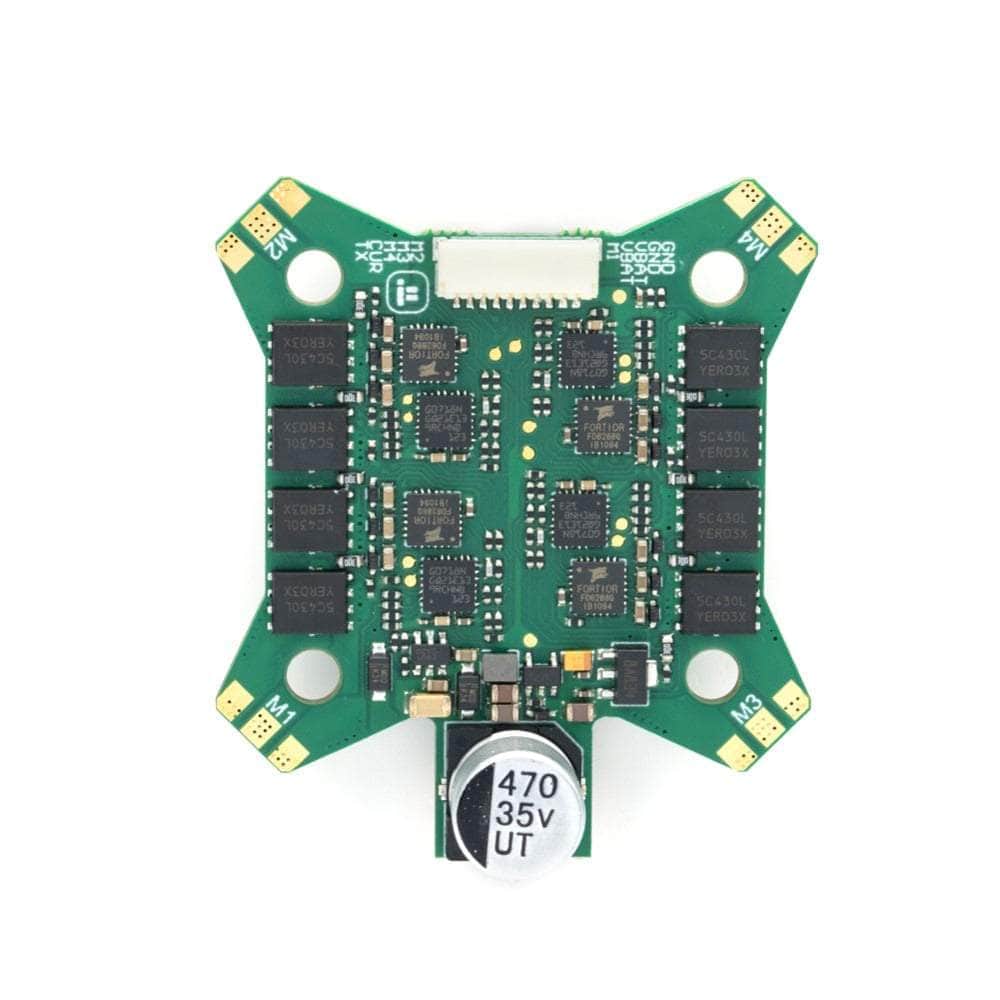

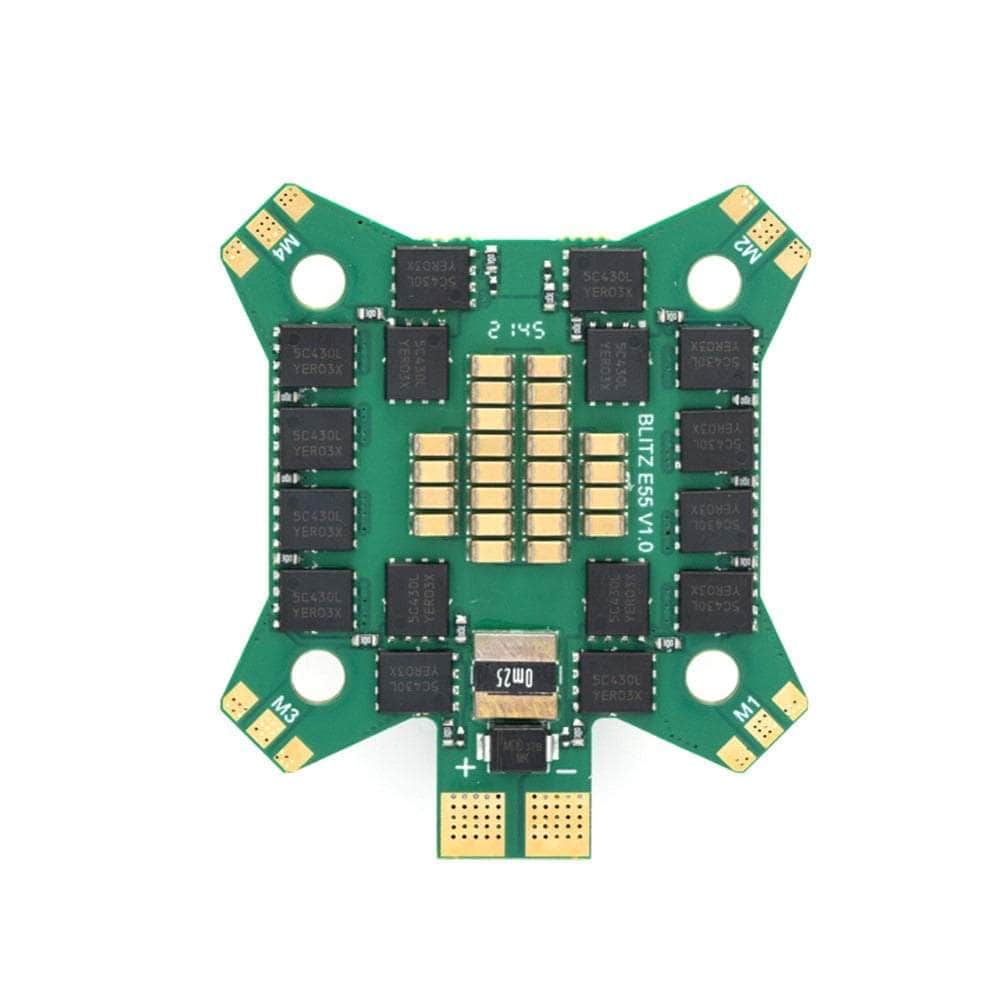

E55 4in1 ESC

• Input Voltage: 2-6S

• Max. Continuous Current: 55A
• Max. Burst Current: 65A
• MCU: G071
• BEC: No
• Firmware: BLHeli32
• Current Sensor: Yes
• Target: IFLIGHT_BLITZ_G2
• Mounting Dimensions: 30.5x30.5mm/Φ4mm
• Dimensions: 35x42mm
• Weight: 15.3g

Includes

• 1x iFlight Blitz F7 V1.2 2-6S 30x30 Stack/Combo (F7 FC/ E55 32Bit 55A 4in1 ESC)
• 1x XT60 Pigtail
