iFlight BLITZ Mini F7 V1.2 E55S 2-6S 20x20 Stack/Combo (F7 FC / 55A BlheliS 4in1 ESC)

The V1.2 of the iFlight Blitz Mini F7 E55S 2-6S 20x20 Stack/Combo has arrived, now in Mini version. These new flight controllers are equipped with a plug and play connectors making connecting your video transmitter, radio receiver, and other periphery sensors a breeze.

Check out all our 20x20 stacks as well as our entire iFlight selection!

Features

• Improved circuit design, better components and lower electrical noise!
• DJI HD VTX Connector (Plug-and-Play / No soldering required)
• FC indicator LEDs for visual debugging

Specifications

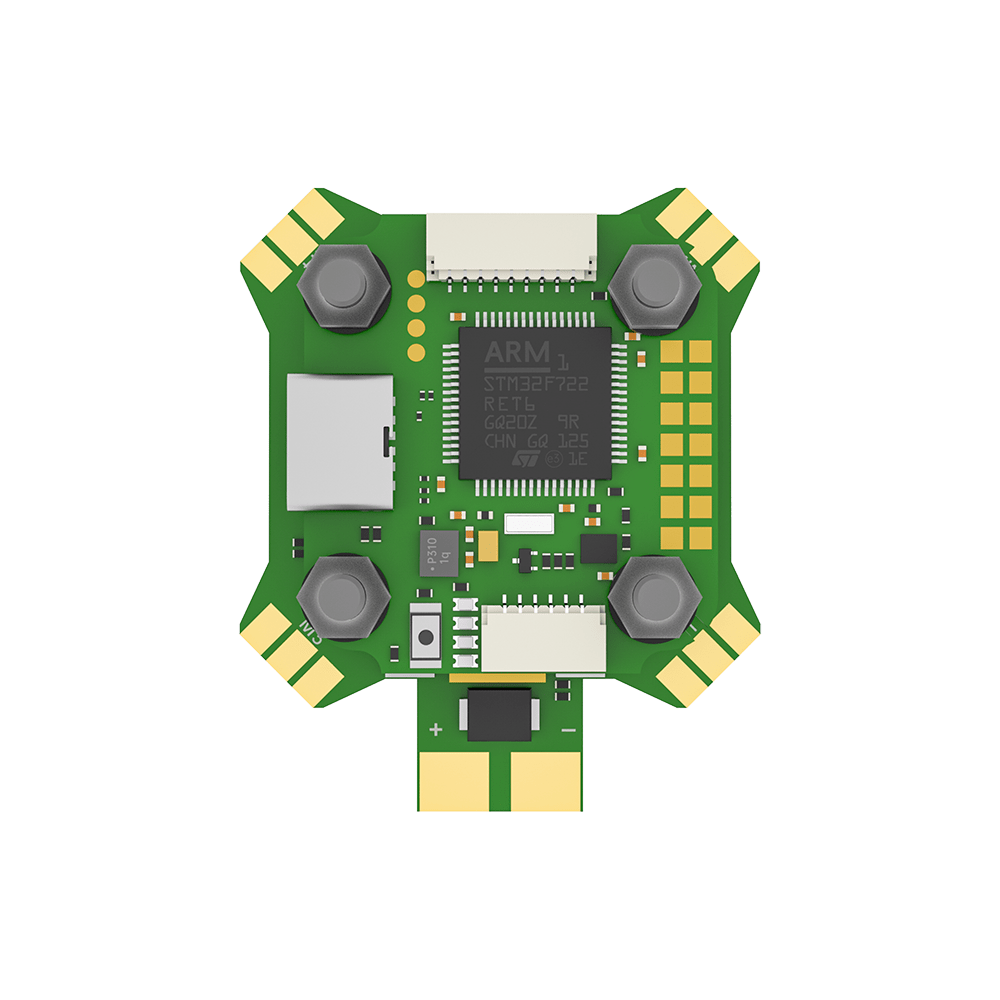

FC Specifications

• MCU: STM32 F722

• Gyro: ICM42688

• Barometer: DPS310

• OSD Chip: AT7456

• Flash: 8MB (Blackbox flash)

• UARTS: 6

• I2C serial: SDA/SLA pads

• Smartaudio / IRC Tramp VTX protocol supported

• LED controller: Yes

• Beeper pad: Yes

• Firmware target: IFRC-IFLIGHT_BLITZ_F722

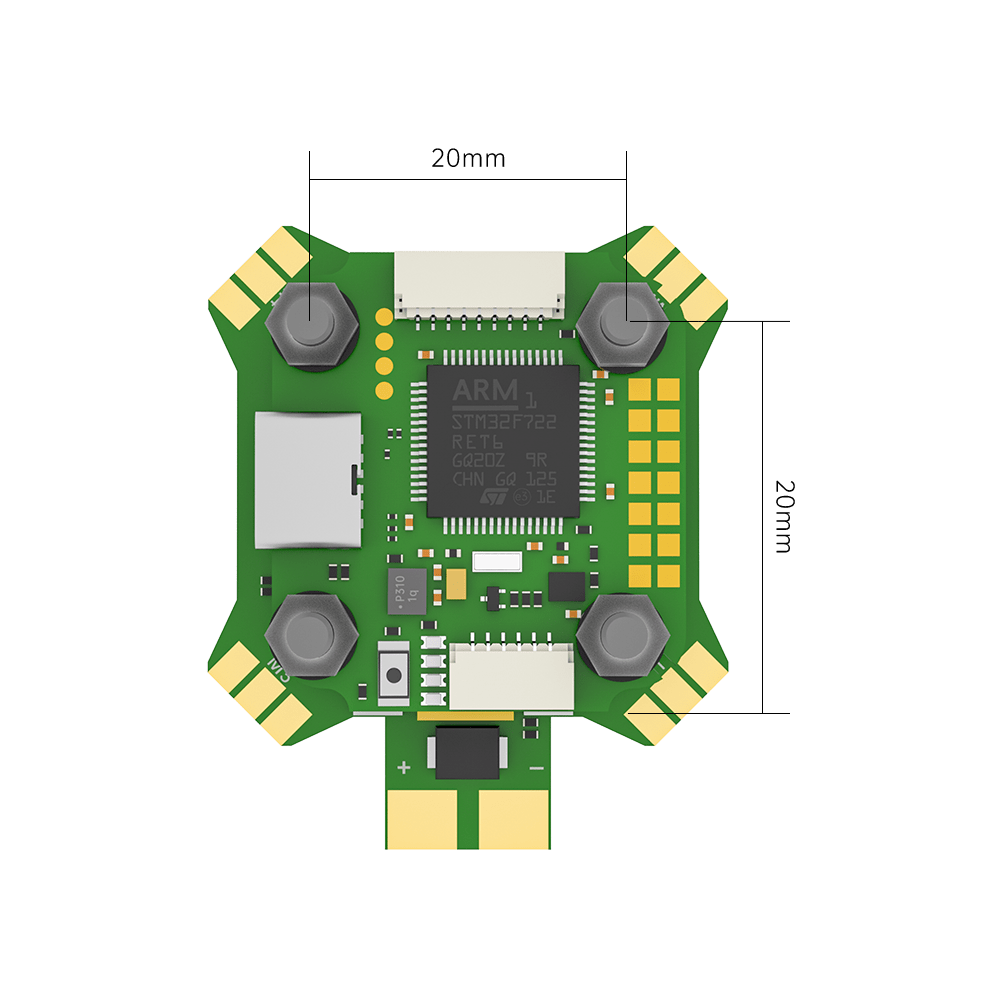

• Mount pattern: 20x20 mm / φ4

• Dimensions: 30.5x27 mm

• Weight: 5g

Wiring Suggestion

• UART 1 for VTX HD / Analog

• UART 2 for a Receiver

• UART 3/4/5 for GPS or other sensors that require a serial port

• UART 6 for ESC Telemetry

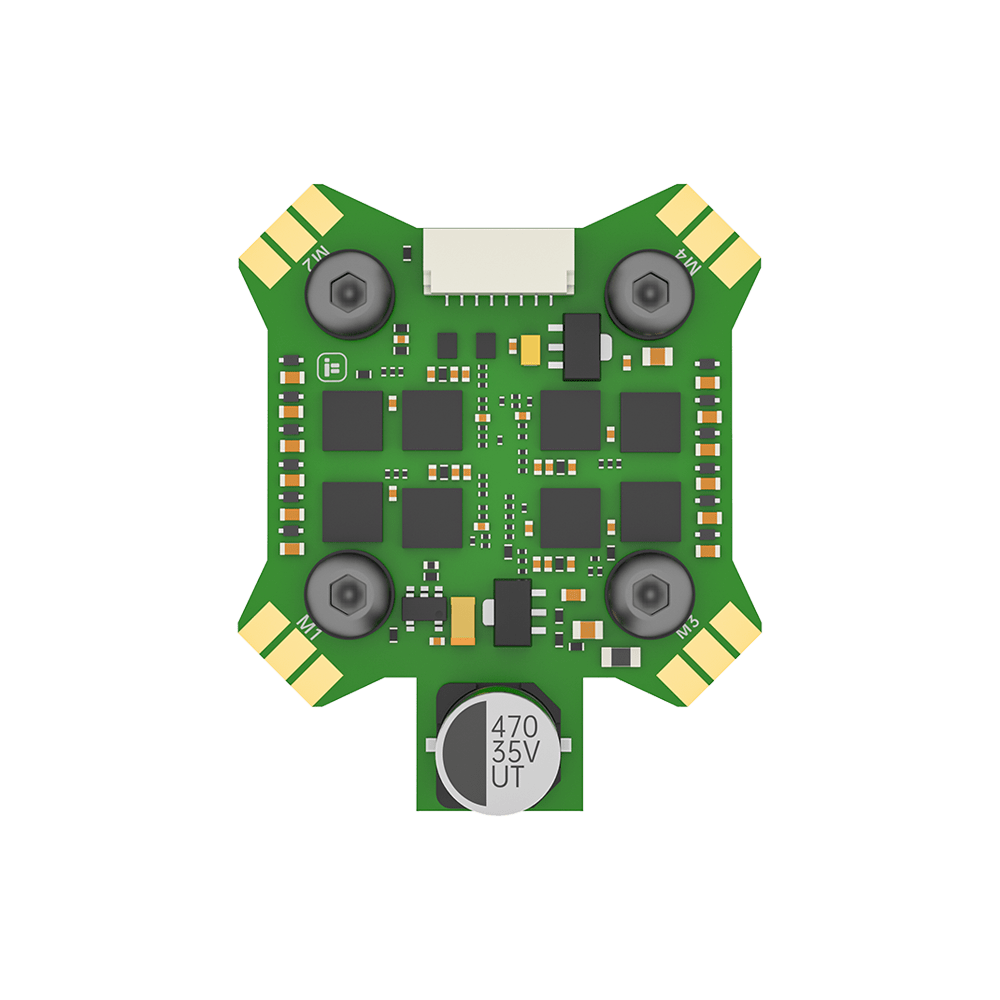

ESC Specifications

• Mounting Holes: 20x20mm/Φ4mm

• Weight: 11.3g

• Supports 2-6S Lipo input

• MCU： BB21

• Constant: 55 Amps

• Burst: 65 Amps

• Current sensor: Yes

• BEC: No

• Current rate: 200

• Supports: DShot DShot150/300/600/MultiShot/OneShot etc.

• Target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-50 (Bluejay)/Q-H-50 - Bluejay, 0.16, 24kHz

Includes

• 1x iFlight BLITZ Mini F7 V1.2 E55S 2-6S 20x20 Stack/Combo (F7 FC / 55A BlheliS 4in1 ESC)
• 1 x silicon grommets

• 1 x wire harness for F7 Flight controller
