RDQ Bardwell F7 V2 with iFlight Blitz E45S 45A 30x30 Stack/Combo

The legendary Joshua Bardwell F7 flight controller now in its V2 state takes everything great about the original JBF7 and adds a few key features that you asked for. Just like the original, it's got an F7 processor, SD card slot for black box logging, and 8 motor outputs. It's got a flexible pad layout that can handle almost any combination of peripherals you could want. Paired with this FC is the iFlight Blitz E45S 45A 2-6S ESC, An amazing 4in1 ESC that comes with a pre-soldered capacitor, big solder pads with lots of space, And a very spacious board layout to allow for easier heat dissipation. Make this stack combo the next powerhouse for any 5 inch freestyle or speedy race build!!

RDQ Bardwell F7 V2 3-6S Specifications

• Input Voltage: 3-6S LiPo
• MCU: STM32F722
• Gyro: BMI270

• Barometer: DPS310
• Power Outputs: 5V 3A, 9V 3A (w/ Pit Switch), 3.3V, vBat
• BF Target: JBF7 V2
• UARTs: 5 (I2C SDA/SCL shared with UART 3)
• Plugs: 4in1 ESC, RX, Analog Cam, HD Cam, VTX, LED/Buzzer
• Mounting Pattern: 30.5x30.5mm
• Weight: 8.3g (w/ gummies & USB Protector)

iFlight Blitz E45S ESC Specifications

• Input Voltage: 2-6S

• Max. Continuous Current: 45A
• Max. Burst Current: 55A
• Firmware: BLHeli_S
• MCU: BB21
• Target: QH-40 16.7
• BEC: No
• Telemetry Output: No
• Current Sensor: Yes
• Current Sensor Scale: 200
• Dimensions 40.5x42x6.5mm

• Mounting Dimesions: 30.5x30.5mm Φ4mm
• Weight: 14.7g

If you have any issues accessing the Black Box features please type out this text in the CLI to get black box data to your SD card 'set sdcard_detect_inverted=on' press ENTER, then type 'save' and press ENTER.

Includes

• 1x RDQ Bardwell F7 V2 3-6S 30x30 Flight Controller
• 1x iFlight Blitz E45S 45A 2-6S 30x30 4in1 ESC

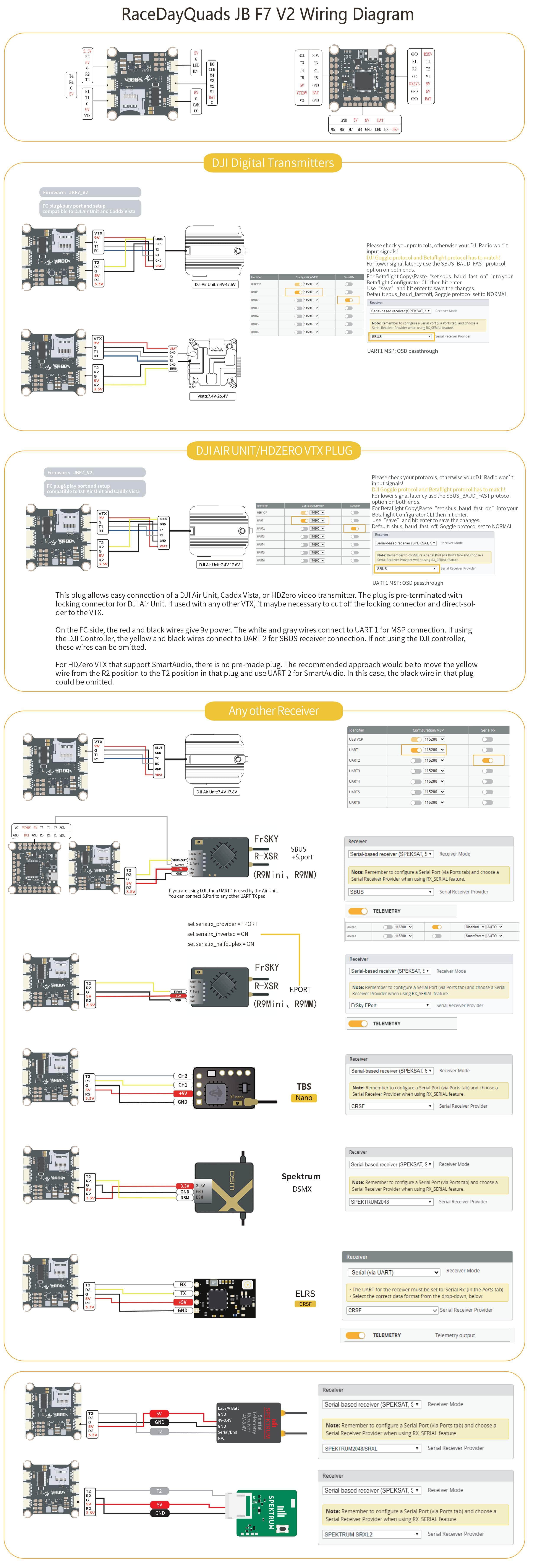

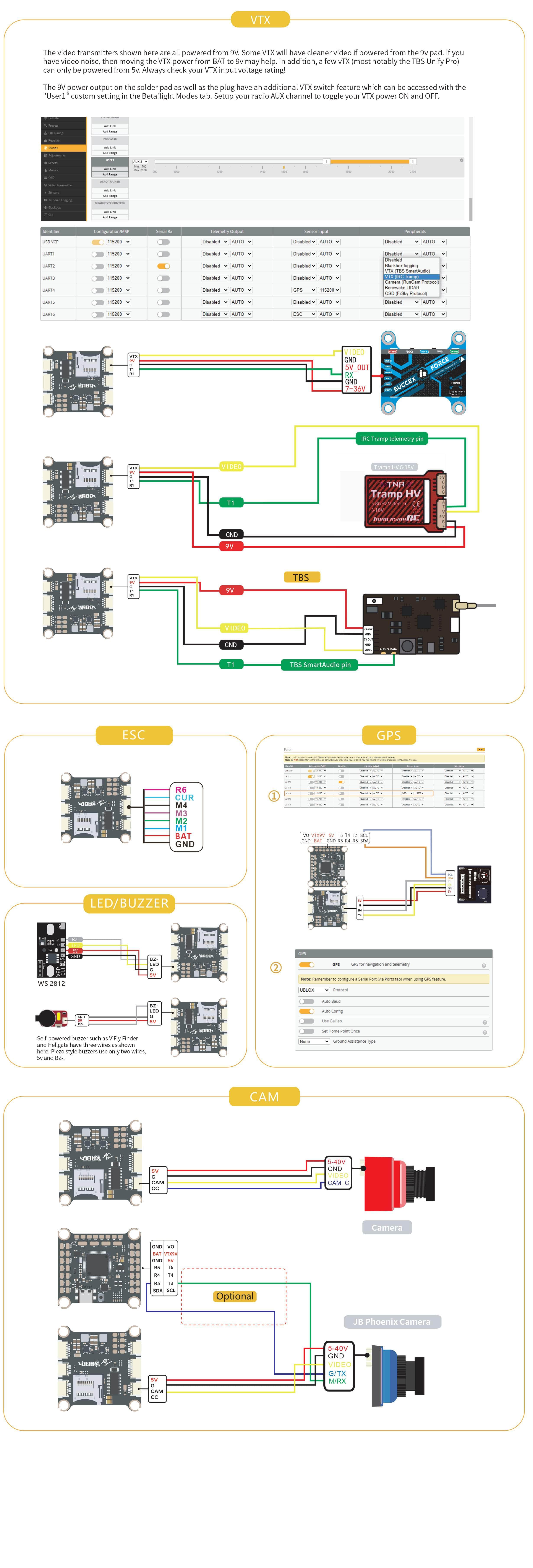

Wiring Diagram
